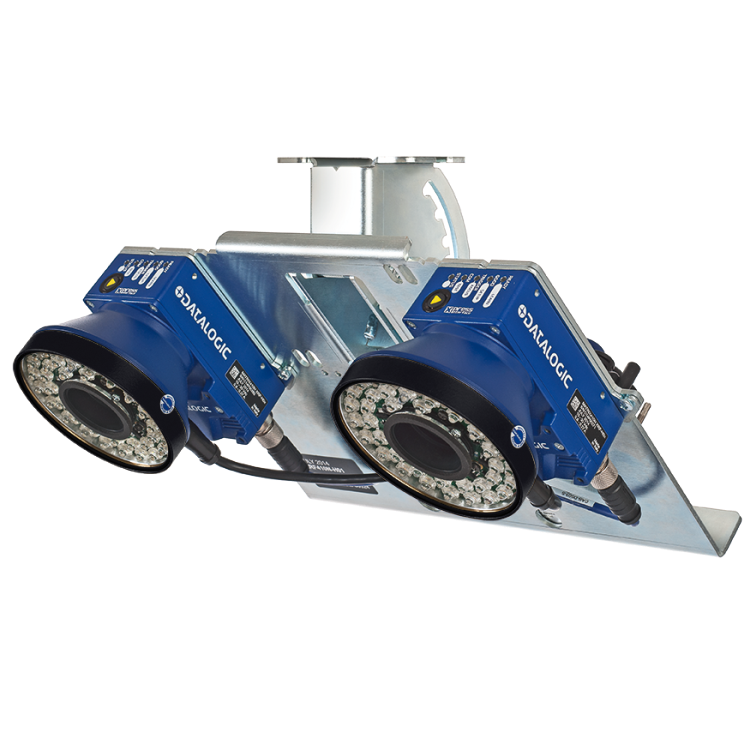

XRF410N
产品描述:
信息 XRF410N 以其更大的阅读范围而命名,是一个基于最新 Matrix 410N 平台的解决方案,用于物流行业的材料搬运和分拣。 XRF410N 为各种物料的搬运应用而设计制造,中型物体运输速度可达 2.2 m/s (433 fpm) ,典型扫描深度 400 mm (15.7 in.) 。 TheXRF410N
  • 信息

    XRF410N™以其更大的阅读范围而命名,是一个基于最新Matrix 410N™平台的解决方案,用于物流行业的材料搬运和分拣。XRF410N™为各种物料的搬运应用而设计制造,中型物体运输速度可达2.2 m/s (433 fpm),典型扫描深度400 mm (15.7 in.)TheXRF410N™是电子商务小型物件订单自动执行系统或邮政物流分拣应用的完美解决方案。

    特点/优势

    · XRF410N™是一款功能齐全的Matrix解决方案,在工厂进行预组装和配置,简化了现场快速安装。

    · XRF410N™运行最新的Datalogic得利捷解码引擎,完全能够成功扫描难以阅读、损坏或质量差的条码

    · CBX500接线盒可选配显示器和存储器块,以便在出现故障时自动更换阅读器。专利绿点提供良好的读取反馈,便于验证。

    · 无需进行技术分析。只需条码尺寸、输送机宽度和速度,即可确定XRF410N™的正确版本...,它只是一个单一的部件号!

    · 采用申请专利中的PackTrack 2D技术,XRF410N非常适合内部短距离间隙的高速分拣(如交叉带、拼合盘)

    · XRF410N™配备了最新的DL.CODE软件,通过实时图像显示、图形配置、嵌入式阅读统计和诊断功能,使用更加轻松愉快



    应用

    Thisproduct series has been developed to satisfy to requirements of the followingreference applications:

    • E-Commerce

    XRF410Nis the perfect solution for ECommerce, with a reconfigured retail code EAN/UPC0.25 mm (10 mil) resolution, a small cell gap with 2D PackTrack software andcode reconstruction for polybags.

    • General material handling with reusable totes

    XRF410Nis optimal for reusable totes identification over handling systems. Complexoperations including scanning the objects inside totes are simplified by theXRF410N’s large, real time Depthof Field (DOF).

    • End-of-line

    XRF410Nis designed to fit medium speed material handling, such as end-of-linemanufacturing, with a price level equivalent to entry-level scanningtechnology.

    • Postal Sorting

    XRF410Nis optimal for top reading of flyers, letters and small parcels typical in thepostal environment.

    • Medium object sortation for couriers

    XRF410Nis a perfect fit for medium size conveyors in logistics productions.
    For instance, a single XRF410N covers a 600 mm conveyor with, with a DOF of 400at 2.2 m/s.



    产品序列提供以下型号:

    产品订货号

    产品描述

    XRF Modules

    937400028

    XRF410N-B00 2HD_MED RES_MASTER

    937400029

    XRF410N-B10 2HD_HI RES_MASTER

    937400030

    XRF410N-H00 2HD_HI PERF_MED RES_MASTER

    937400031

    XRF410N-H10 2HD_HI PERF_HI RES_MASTER

    937400032

    XRF410N-H20 2HD_HI PERF_VHI RES_MASTER

    937400033

    XRF410N-B01 2HD_MED RES_EXTENSION

    937400034

    XRF410N-B11 2HD_HI RES_EXTENSION

    937400035

    XRF410N-H01 2HD_HI PERF_MED RES_EXTENS

    937400036

    XRF410N-H11 2HD_HI PERF_HI RES_EXTENS

    937400037

    XRF410N-H21 2HD_HI PERF_VHI RES_EXTENS

    Pre-assembled spare parts

    937400038

    MATRIX 410N XRF-B0x SPARE UNIT-REPLMNT

    937400039

    MATRIX 410N XRF-B1x SPARE UNIT-REPLMNT

    937400040

    MATRIX 410N XRF-H0x SPARE UNIT-REPLMNT

    937400041

    MATRIX 410N XRF-H1x SPARE UNIT-REPLMNT

    937400042

    MATRIX 410N XRF-H2x SPARE UNIT-REPLMNT



    以下附件可用于简化安装和优化产品性能:

    产品订货号

    产品描述

    Folding mirror

    93ACC0116

    EMK-MTX-600 EXT.MIRROR XRF410N - 600MM

    Main cables

    93A051346

    CAB-ETH-M01 M12-IP67 ETHERNET CABLE (1M)

    93A051347

    CAB-ETH-M03 M12-IP67 ETHERNET CABLE (3M)

    93A051348

    CAB-ETH-M05 M12-IP67 ETHERNET CABLE (5M)

    93A050058

    CAB-DS01-S M12-IP67 TO CBX 1M

    93A050059

    CAB-DS03-S M12-IP67 TO CBX 3M

    93A050060

    CAB-DS05-S M12-IP67 TO CBX 5M

    93A050084

    CAB-MLP-05 MULTI LIGHTING POWER 5M

    CBX connection boxes and related accessories

    93A301067

    CBX100 CONNECTION BOX COMPACT

    93A301068

    CBX500 CONNECTION BOX MODULAR

    93A301069

    CBX100LT CONN. BOX COMPACT LOW TEMP.

    93A301077

    CBX800 GATEWAY

    93A301076

    CBX100 All in One

    93A301070

    CBX500 Profibus All-in-one; BM100+BM300

    93A301071

    CBX500 Ethernet All-in-one; BM100+BM520

    93A301072

    CBX500 Devicenet All-in-one; BM100+BM400

    93ACC1821

    BA100 DIN RAIL ADAPTERS

    93ACC1822

    BA200 BOSCH ADAPTERS

    93ACC1877

    BA300 M12 3P F. PANEL CONN. (SERVICE)

    93ACC1853

    BA400 M12 3P M. PANEL CONN. (EXT.POWER)

    93ACC1854

    BA500 M12 4P F. PANEL CONN. (TRIGGER)

    93ACC1855

    BA600 M12 5P F. PANEL CONN. (ID-NET OUT)

    93ACC1856

    BA700 M12 5P M. PANEL CONN. (ID-NET IN)

    93ACC1847

    BA900 TWO CABLE GLANDS PANEL

    93ACC1827

    ADP-FF1 GENDER CHANGER 25P F/F (5PCS)

    93ACC1828

    ADP-MM1 GENDER CHANGER 25P M/M (5PCS)

    Optional modules for CBX500

    93ACC1808

    BM100 BACKUP MODULE

    93ACC1809

    BM150 DISPLAY MODULE

    93ACC1851

    BM200 ETHERNET TCP/IP MODULE

    93ACC1852

    BM210 ETHERNET TCP/IP IP65 MODULE

    93ACC1810

    BM300 PROFIBUS MODULE

    93ACC1811

    BM310 PROFIBUS IP65 MODULE

    93ACC1814

    BM400 DEVICENET IP65 MODULE

    93ACC1812

    BM500 ETHERNET MODULE

    93ACC1813

    BM510 ETHERNET IP65 MODULE

    93ACC1840

    BM520 ETHERNET IP54 MODULE

    93ACC1815

    BM600 CAN OPEN MODULE

    93ACC1816

    BM700 PROFINET MODULE

    93ACC1845

    BM1100 CC-LINK MODULE

    93ACC1848

    BM1200 MODBUS TCP MODULE

    93ACC1849

    BM1210 MODBUS TCP IP65 MODULE

    93ACC0113

    BM1300 ETHERCAT MODULE

    Quick Link Connection Modules

    93ACC1860

    QL100 ID-NET T-CONNECTION

    93ACC1868

    QL150 ID-NET + SERVICE T-CONNECTION

    93ACC1861

    QL200 ID-NET + POWER T-CONNECTION

    93ACC1862

    QL300 STANDARD CONNECTION MODULE

    93ACC1864

    QL500 CONNECTION MODULE + ETHERNET

    93ACC0033

    QLM600 PROFIBUS IP65 CONN. MODULE

    93ACC0037

    QLM500 ETHERNET/IP IP65  CONN. MODULE

    93ACC0038

    QLM700 PROFINET IP65 CONN. MODULE

    Clustering cables

    93A051385

    CAB-AUX03 M12 3P TO DB9 SERIAL CABLE 3M

    93A051381

    CAB-PW-EXT M12 POWER EXTENSION CABLE

    93ACC1883

    FMC300 M12 3P M. CONN. SERVICE

    93ACC1884

    FMC400 M12 3P F. CONN. POWER

    93A051386

    CAB-AUX04 15P DSUB TO DB9 SERIAL CABLE

    93ACC0040

    FMC600 M12 8P M. A-Code QLM-I/O

    93A050048

    CBL-1480-0.3 M12/5P MALE/FEM. 0.3M IDNET

    93A050049

    CBL-1480-01 M12/5P MALE/FEMALE 1M IDNET

    93A050050

    CBL-1480-02  M12/5P MALE/FEMALE 2M IDNET

    93A050051

    CBL-1480-05 M12/5P MALE/FEMALE 5M IDNET

    93A050045

    CBL-1487 CONNECTOR M12/5P/FEMALE IDNET

    93A050046

    CBL-1490 TERM. RESIST. M12/5P/MALE IDNET

    93A050052

    CBL-1494-02 M12/5P/FEMALE-LEADS 2M IDNET

    93A050053

    CBL-1494-05 M12/5P/FEMALE-LEADS 5M IDNET

    93A050047

    CBL-1496 TERM. RESIST. M12/5P/FEM. IDNET

    93A050056

    CBL-1498-02 M12/5P/MALE-LEADS 2M IDNET

    Power supplies

    93ACC0046

    PG-120-K01 PWR SUPPLY KIT FOR M450 (EU)

    93ACC0047

    PG-120-K02 PWR SUPPLY KIT FOR M450 (UK)

    93ACC0048

    PG-120-K03 PWR SUPPLY KIT FOR M450 (US)

    93A050043

    CAB-PG-0105 VDC PWR PG120-M450 5M

    93ACC1870

    CAB-PG-0002 VDC PWR PG120-IDNET 2M

    93ACC0076

    PWR-480B POWER UNIT  110/230VAC 24V

    Documentation kit

    93ACC0148

    SW-DOCS-TEST CHART FOR MATRIX DL.CODE
